Water monitoring radar series

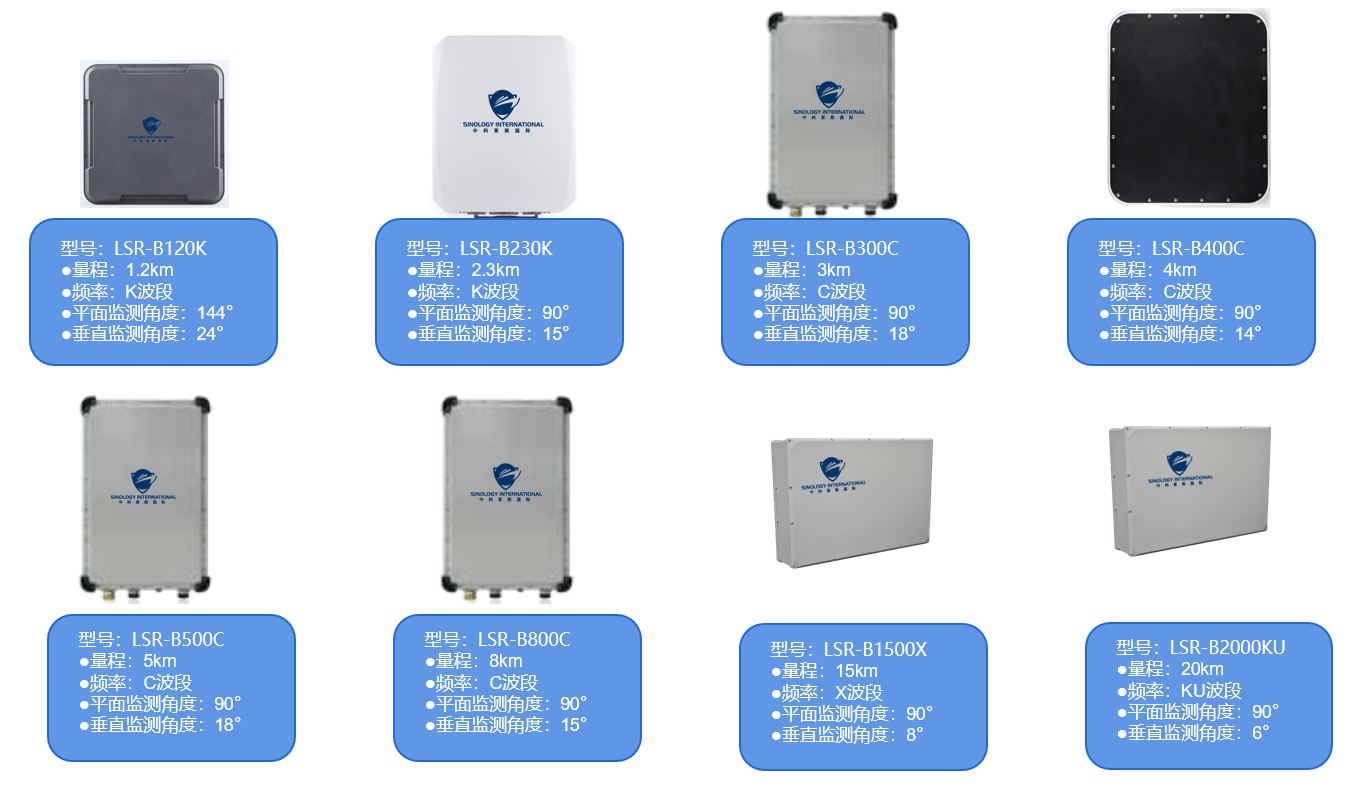

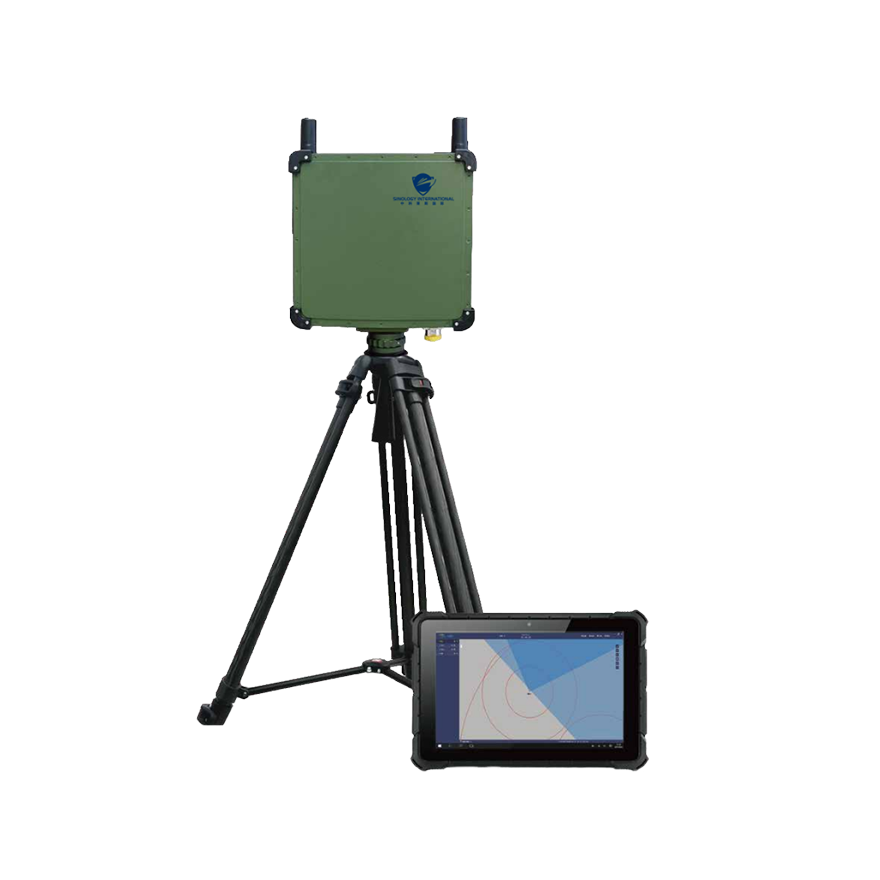

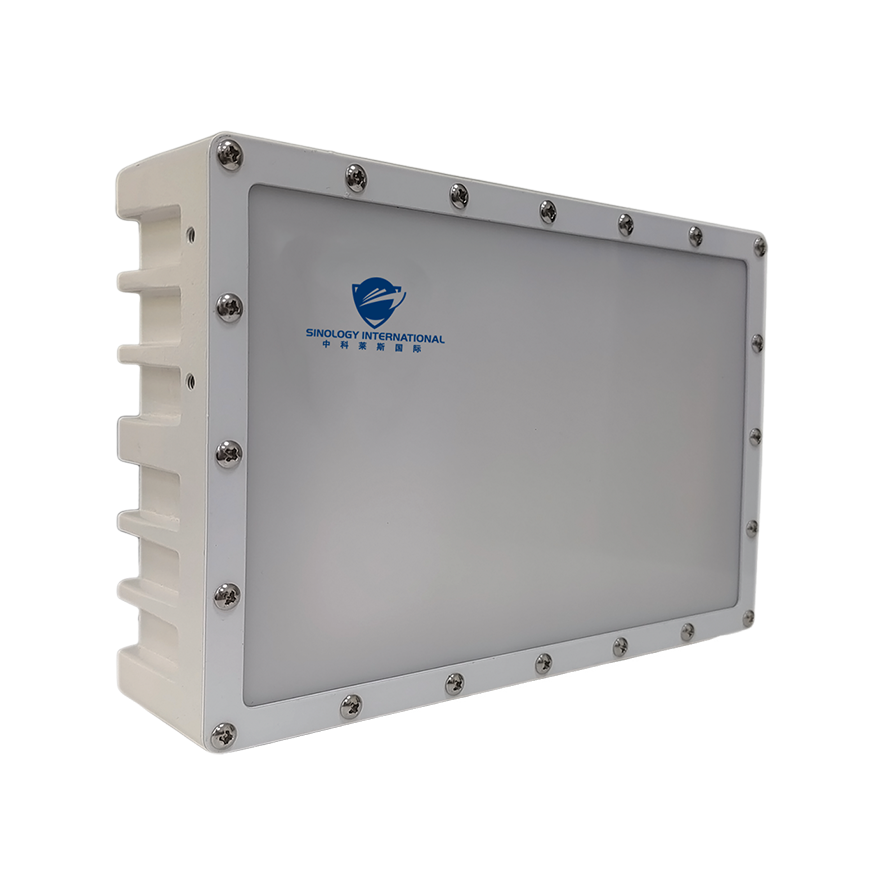

The Sinology LSR Water Monitoring Series phased array radar is suitable for marine vessels, coastal defense, and other applications. As a high-level front-end sensor, it boasts high data acquisition rates, precision, and digitalization. It can accurately perceive information about moving vessel targets, such as position, distance, azimuth, speed, and course, and can coordinate with optical devices to monitor the trajectory of moving targets and achieve precise identification. The radar is compact, lightweight, low-power, easy to install, and quick to deploy. It can also serve as an edge perception sensor in 5G environments.
This radar series is capable of all-weather real-time detection and tracking of moving targets such as surface vessels, plotting their trajectories, assessing their threat levels, and directing optoelectronic equipment to track and identify targets, unaffected by lighting conditions, darkness, haze, or rain.
Related products
Functional characteristics
(1) Detection: Radar combined with optoelectronics detects targets. The information detected by radar for moving targets includes longitude, latitude, distance, azimuth, velocity, direction of motion, etc.
(2) Tracking: Radar and electro-optical systems automatically link to track intrusion targets such as ships.
(3) Identification and monitoring: Mark and display the location and motion trajectory of the target on the map, and track and monitor in real-time; Linkage intelligent ball machine tracking, capturing and close range recognition.
(4) Positioning and orientation: Based on the position and pointing north of the detection equipment, radar detection is used to obtain the distance and orientation of the target, and the geodetic coordinates of the target are converted to obtain the coordinate position of the detected target.
(5) Map display: Using GIS maps, display the target in real-time on the map and show parameters such as latitude and longitude.

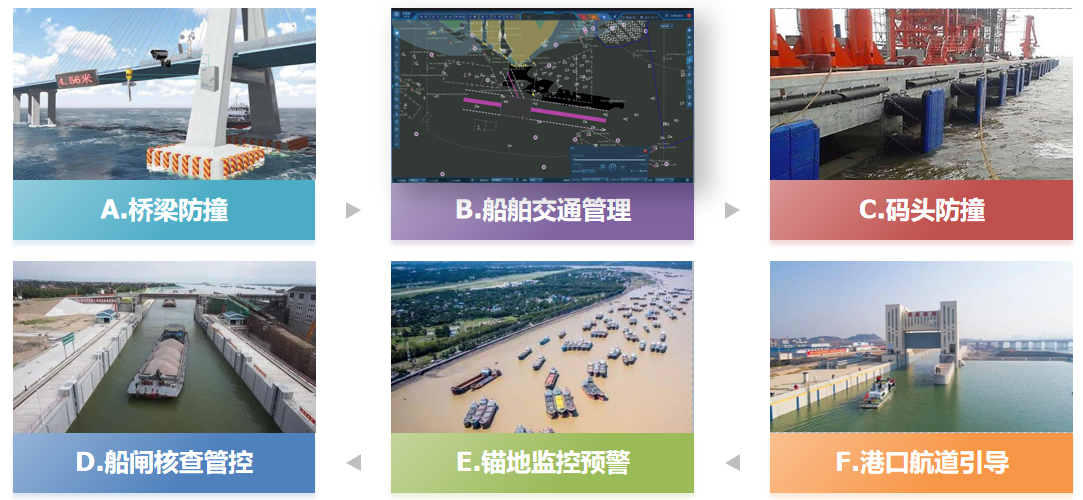

application area
